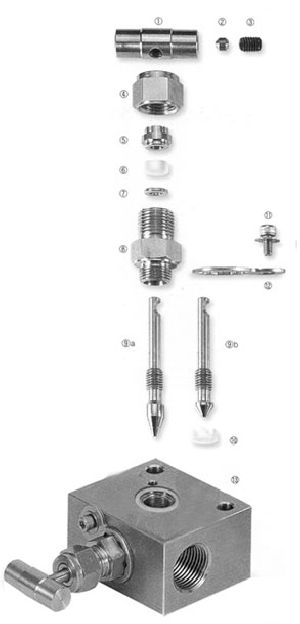

2 Way Manifold Valve

Priti Enterprises 2 Valve Manifolds offer safety and reliability in a general purpose design. The simple 2- Valve Configuration allows for easy block, bleed and calibration of a static pressure transmitter or gauge. Valves are available with either metal seats or replaceable soft seat inserts. Connections are 1/2 female NPT on all three ports.

SPECIFICATION

• Connection : 1/2" Female NPT to 1/2" Female NPT.
• One-piece, high strength body construction for safety no welding used.
• Stems feature an non-rotating top with an easily replaceable soft insert.
• Bonnet lock pin prevents accidental valve disassembly.
• 316 stainless steel construction for superior corrosion resistance.
• Bonnet-to-body seals are metal-to-metal-no O-Rings used.
• Mounting holes provided for self supporting applications.
• 100% pressure tested for shut-off and at all seals.
• Manifolds feature at 4:1 safety factor.
